iLS Direction Indicator Monitoring System
iLS Direction Indicator Monitoring System

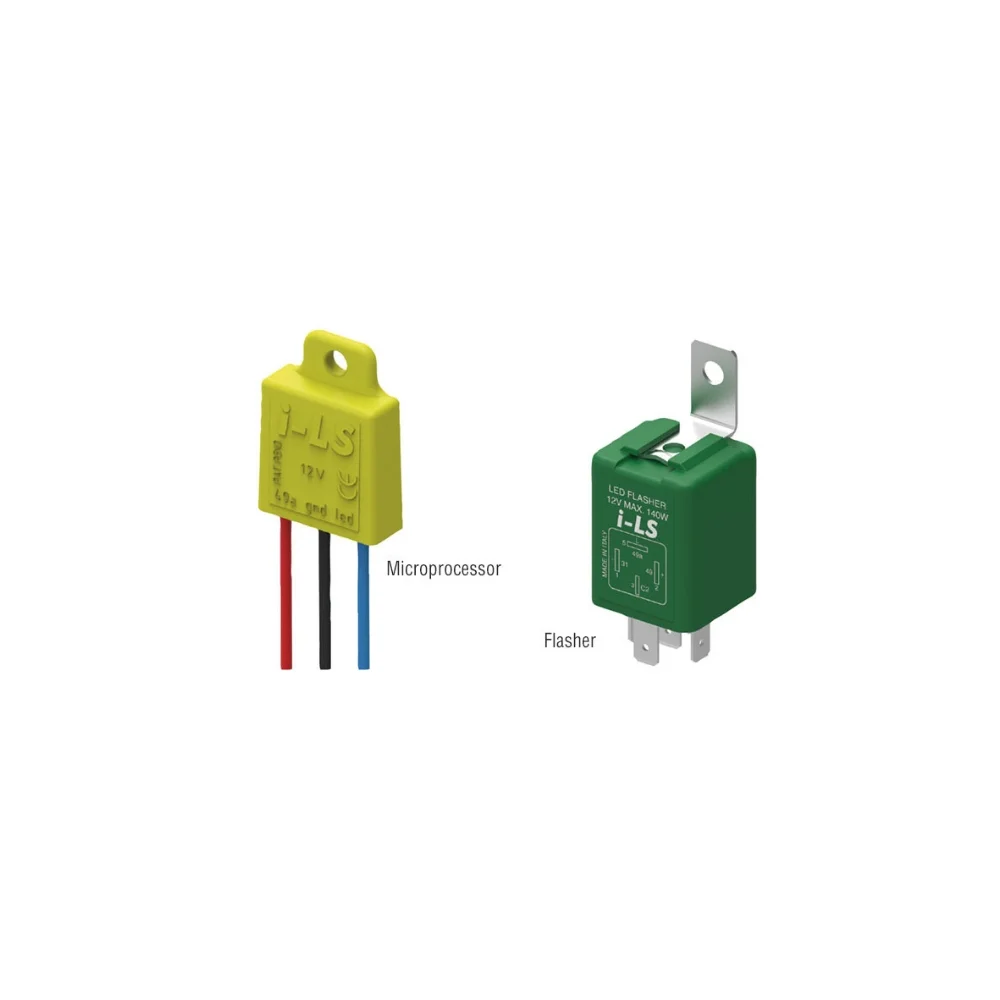

The iLS system consists of two elements, a microprocessor-based booster unit and a flasher relay. 12V and 24V versions are available.
ISO 13207-1 Compatible Microprocessor
Versions available for 12 Vdc and 24 Vdc systems
The iLS module monitors the LED direction indicator light it is linked to and sends out a pulse signal at a frequency that matches the frequency required for ISO 13207-1. It can be used in tandem with the iLS flasher relay, or independently on an ISO 13207-1 compliant vehicle.
As the module does not contain a resistor there is no heat build up, so there is no need to mount the unit on a metal surface. One unit per indicator light is required.
iLS Flasher Relay
Versions available for 12 Vdc and 24 Vdc systems
The flasher relay can be used to replace a traditional relay when using the iLS microprocessor, thus providing a self-contained system. Failure of the LED indicator would generally be identified by a fast flash or a warning light on the dashboard.
Additional Information
Part Numbers
ILS-590012 – 12v iLS Microprocessor
ILS-590024 – 24v iLS Microprocessor
ILS-590124 – 24v Relay, 4 pin, 2+1
ILS-590224 – 24v Relay, 4 pin, 3+1
ILS-590212 – 12v Relay, 4 pin, 2+1
